Vintage Tone Out Of The Box
“The DGT is a product a lot of miles down the road: a lot of gigs, a lot of records. It’s like picking up a vintage guitar. It sounds like a vintage guitar, and out of the box it’s ready to go. There’s a whole lot of thought gone into this. The DGT is pretty perfect to me.” – David Grissom

The DGT (David Grissom Trem) is the result of more than 20 years of collaboration between Paul Reed Smith and David Grissom. The DGT is based on the McCarty platform with a unique DGT neck shape, taller frets, specially-voiced pickups, and a revised control layout. Grissom and Paul spent a year A/B-ing more than forty sets of pickups before nailing the vintage-voice of DGT humbuckers. When paired with individual volume controls for each pickup and a push/pull master tone control that operates the coil taps, DGT pickups provide versatility and articulation.

An ultimate expression of a player’s guitar.

SPECIFICATIONS
BODY
Body Construction: Solidbody
Top Wood: Maple
Back Wood: Mahogany
Top Carve: Violin

NECK
Number of Frets: 22
Scale Length: 25"
Neck Wood: Mahogany
Neck Construction: One-Piece
Truss Rod: PRS Double-Acting
Neck Shape: DGT
Neck Depth at the 1/2 Fret: 27/32"
Neck Depth at the 12 1/2 Fret: 61/64"
Neck Width at the Nut: 1 21/32"
Neck Width at the Body: 2 7/32"
Fretboard Wood: Rosewood
Fretboard Radius: 10"
Fretboard Inlay: Birds
Headstock Logo: Signature, Decal

NECK/BODY ASSEMBLY
Neck/Body Assembly Type: Set

FINISH
Finish Type: High-Gloss Nitro

HARDWARE
Bridge: PRS Patented Tremolo, Gen II
Tuners: PRS Phase III Locking Tuners with Faux-Bone Buttons
Hardware Type: Nickel
Nut: PRS
Truss Rod Cover: "DGT"

ELECTRONICS
Treble Pickup: DGT
Bass Pickup: DGT

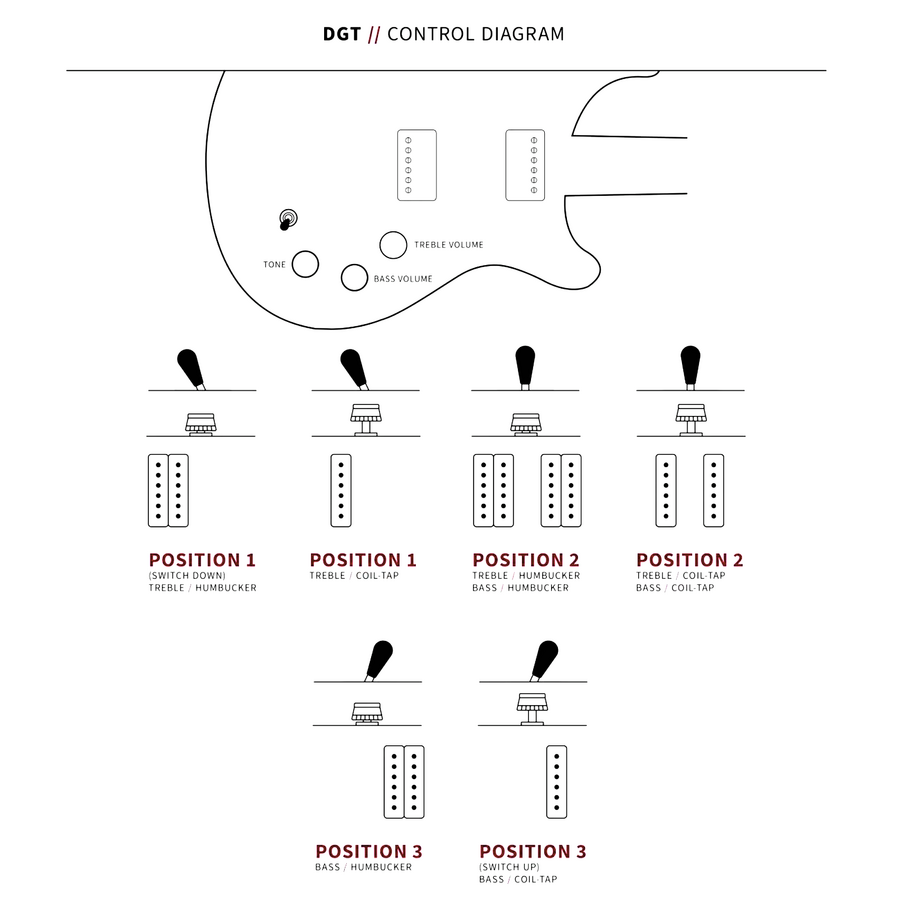

Controls: Two Volume Controls w/ Push/Pull Tone Control and 3-Way Toggle Pickup Switch

ADDITIONAL INFO
Strings: PRS Signature 11-49 (with a plain “G”)
Tuning: Standard (6 String): E, A, D, G, B, E
Case: Hardshell Case
Options: 10 Top with Hybrid Hardware
