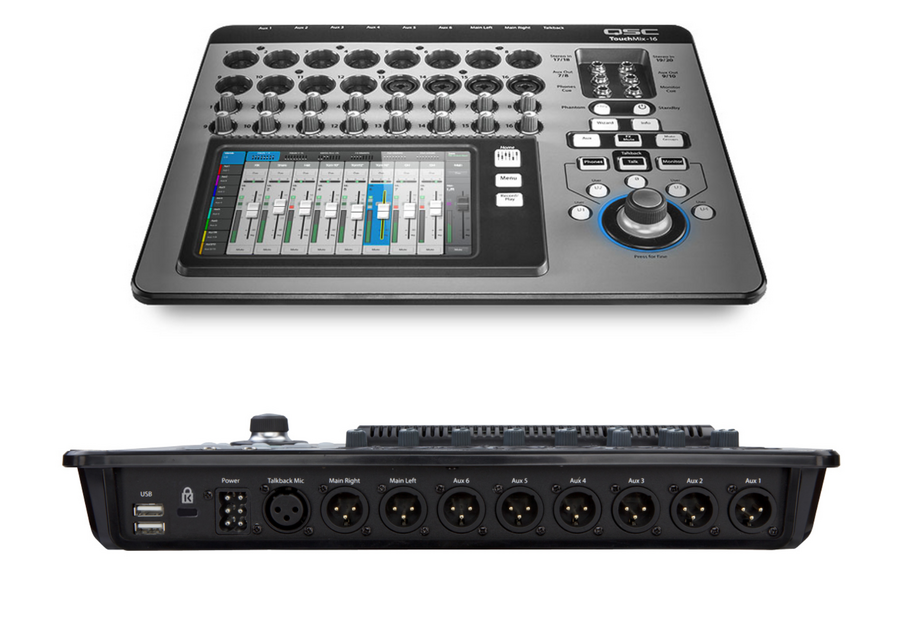

QSC Touch Mix 16 Channel Compact Digital Mixer TOUCHMIX-16 $ 2799 $3,499.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

TouchMix is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, bands, AV production professionals and small performance venues, the TouchMix-16 goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily.

Its 22 mixing channels (16 Mic/Line, 4 Line, Stereo USB) and 12 outputs offer ample signal management flexibility while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, real-time analyzer (RTA) and 20-channel direct-to-external-drive recording make it equally competent as both a professional live sound or recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to the mixer. Mixer functions and displays are duplicated via iOS® or Android® devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control of mixer functionality.

The TouchMix-16 comes complete with USB Wi-Fi adapter and carrying case.


Specifications


TouchMix-8 TouchMix-16
Display 6.1” × 3.5” (156 mm × 90 mm) color TFT, touch sensing 6.1” × 3.5” (156 mm × 90 mm) color TFT, touch sensing
Inputs (Mic/Line) 12 total:
Four XLR/TRS combo
Four XLR
Two stereo 1/4" TRS
20 total:
Four XLR/TRS combo
12 XLR
Two stereo 1/4" TRS
Input (Talkback) N/A One XLR
Outputs Two main XLR line-level
Four aux XLR line-level
One stereo TRS (line-level or in-ear monitor, 16Ω min. impedance)
One stereo cue, TRS, (line or headphone, 16Ω min. impedance)
Two main XLR line-level
Six aux XLR line-level
Two stereo aux. TRS (line-level or in-ear monitor, 16Ω min. impedence)
One stereo monitor TRS (line-level or headphone, 16Ω min. impedance)
One stereo cue TRS, (line-level or headphone, 16Ω min. impedance)
Mic & Line Input Channel Processing (both models) 4-band parametric EQ with high/low shelving option, variable 24 db/octave HPF & LPF, gate, compressor
2-Track (USB) & FX Return Processing (both models) 2-band shelving EQ, variable 24 dB/octave HPF, gate, compressor
Output Channel Processing (both models)

Main outputs and auxes 1–6: 1/3 octave GEQ • Limiter • 4 full-frequency notch filters • Variable 18dB/oct Low-cut and High-cut filters
Auxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter • Additional variable 18dB/oct Low-cut and High-cut filters

Recording 14 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
Groups (both models) 8 DCA groups (with mutes), 8 Mute groups
Cue (both models) Selectable AFL or PFL
Effects (both models) 4 professional effects engines including reverb, echo, delay, chorus. 50 factory, 50 user presets
1 pitch correct (assignable to any mono input channel)
Scene and Preset Memory

Scenes: 130 user-defined scenes, including all mixer parameters may be stored internally or on FAT32 formatted USB Channel and FX Presets: 130 user-defined channel presets and 130 FX presets may be stored internally or on FAT32 formatted USB

External Control (both models) iOS TouchMix app for iPad, iPad mini, iPad Air. Control via Wi-Fi provides access to all mixer functions. Requires iOS 6 or higher.
Wi-Fi (both models) USB Wi-Fi adapter included
Dimensions (HWD)

56 mm x 333 mm x 245 mm
2.2” x 13.1” x 9.6”

58 mm x 360 mm x 291 mm
2.3” x 14.2” x 11.5”

Weight 4.3 lb (1.95 kg) 5.9 lb (2.98 kg)
Power (both models) 100–240 VAC, 50–60 Hz
Sampling Frequency (both models) Selectable 44.1 kHz or 48 kHz
Internal Processing (both models) 32-bit floating point
Signal Delay (Latency; both models)
THD (both models)  <0.005%, +4 dBu, 20 Hz - 20 kHz, unity gain, any input to any output
Frequency Response (both models) 20 Hz–20 kHz ±0.5 dB, any input to any output
Dynamic Range (both models) 105 dB
Equivalent Input Noise (both models) -126 dBu
Residual Output Noise (both models) -86 dBu
Crosstalk (both models) -80 dB
S/N Ratio (both models) -94 dB
Maximum Input Level (both models) +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs)
Phantom Power (both models) 48V, individually switchable per channel
Included (both models) USB WiFi adapter, soft carrying case, power supply
