Radial PZ-Pre Acoustic Instrument Preamp With Two Inputs RA-PZ-PRE $ 629 $779.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

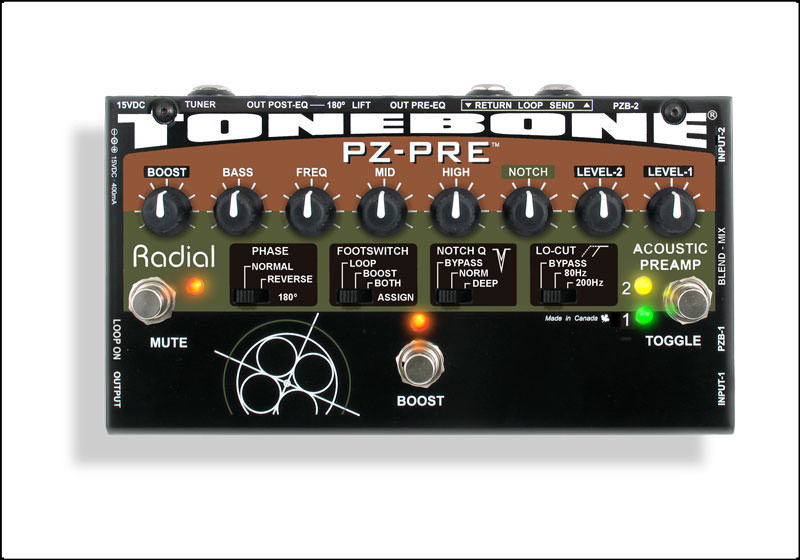

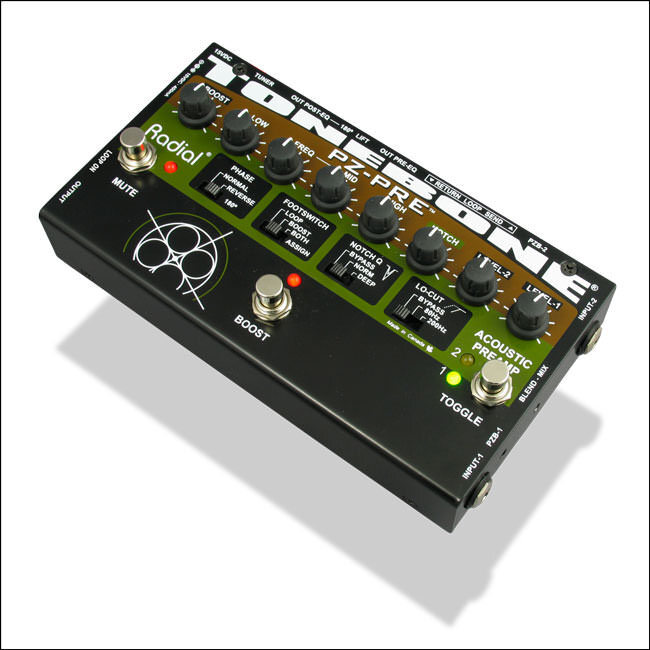

Radial PZ-Pre Acoustic Instrument Preamp With Two Inputs

  • Two channels to switch between instruments
  • Notch & resonance filters eliminate feedback
  • Pre & Post Radial DI outputs for PA and monitors
  • Power booster and mute for more control on stage

The Radial Tonebone PZ-Preâ„¢ is the most powerful acoustic preamplifier ever to be put inside a pedal. And when we say acoustic, we do not just mean acoustic guitar - we mean ANY acoustic instrument including banjo, violin, cello, mandolin, contrabass, bouzouki or lute. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control.

The PZ-Pre is equipped with two inputs for quick instrument changes on stage. These can also be combined to blend two pickups together if you so desire. Features include a powerful yet warm sounding semi-parametric EQ to tailor your sound, feedback eliminating controls including a dual-Q notch filter to surgically remove feedback, a high-pass filter to cut low frequency resonance, and a phase reverse switch to eliminate hot spots on stage. It is also equipped with a host of outputs: a ¼" hi-Z instrument out for an on-stage amp, a pre-EQ balanced XLR output for the PA system and a post EQ XLR out for stage wedges or in-ear monitors. A dedicated tuner out with mute switch lets you quietly tune on-stage. There's even a combination power booster - effects loop to add sizzle and dynamics to the performance and extra presence when soloing!

Compact and easy to use, the Radial PZ-Pre packs in all of the features you need to take your acoustic instrument from home to studio and club to concert.



  • The PZ-Pre is the perfect stage partner for switching between two acoustics. You can have one for backup, alternate tuning or switch from 6-string to 12-string with ease.

  • Switch between contrabass and electric or acoustic bass with a simple foot stomp! The PZ-Pre's input is easily optimized to work with finicky piezo pickups for deeper more natural tone.



  • Using the PZ-Pre on violin with a piezo transducer will give you more gain before feedback than a microphone. You will be surprised at how good a piezo can sound when connected to a PZ-Pre!

Specifications

The Radial PZ-Pre is a high performance preamp designed specifically for acoustic instruments and pickups of all sorts. A proprietary response curve has been developed that works in conjunction with the passive-interactive tone controls and piezo optimized front end to produce a warm yet detailed sonic signature. Exceptionally low noise and distortion differentiate the PZ-Pre from others producing a natural tone that will flatter most instruments of all types.



Specifications
Specifications are subject to change without notice.
Circuit Type: Proprietary active circuit
Standard input impedance: 6.8k Ohm at input jack ('PZB' switch out)
Input with PZB switch in Impedance: 10meg Ohm at input jack
Output Impendence: 1k Ohm
Low cut roll-off:

Position 1: 75Hz

Position 2: 2:220Hz

Notch Freq. range: 56Hz to 330Hz
Notch Q:

Setting 1: -8dB

Setting 2: -15dB

EQ

LOW
Shelving
+/- 12dB @ 75Hz

MID
Parametric
+/- 12dB @ 82Hz to 5.6kHz


HIGH
Shelving

+/- 12dB @ 7.5kHz

Boost level 12dB
Effects send & receive -10dB
FX loop impedance

Send: 1k Ohm

Receive: 15k Ohm

Polarity 180° switch (absolute phase reversal)

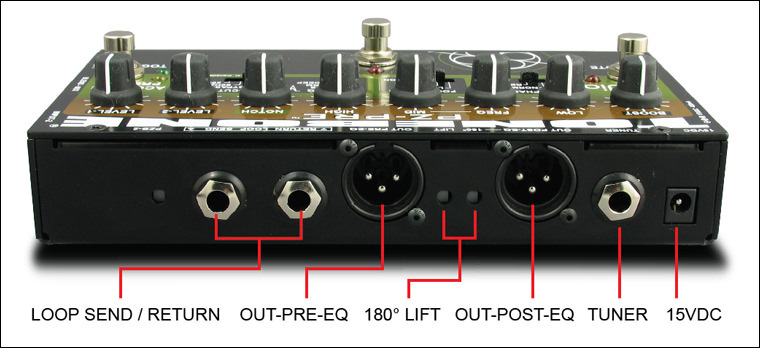

Connections Input-1: ¼" unbalanced
Input-2: ¼" unbalanced
Insert Send/Receive: ¼" unbalanced
Amp output: ¼"unbalanced, Hi-Z, 1k Ohm
Tuner output: ¼"unbalanced, Hi-Z, 6.8k Ohm
Pre-EQ output: XLR balanced mic level 600 Ohms
Post-EQ output: XLR balanced mic level 600 Ohms
Footswitches Three: Mute, Boost, Toggle 1-2
Heavy-duty high-cycle switches
LED indicators Large 3mm OD ultra-bright LED indicators for:
mute, boost, Ch-1 & Ch-2 toggle status
Construction
14 guage steel, baked enamel finish
Size
8"w x 4 ¼"d x 2"h (205 x 110 x 51mm)
Weight
2.7lbs (1.2kg)
Warranty
Radial 3-year limited warranty
Power Supply:
15VDC 400mA, center pole positive

Part # R800 9407 00 - 120 volt
Part # R800 9407 01 - 230 volt
 Part # R800 9407 02 - 230 volt
Part # R800 9407 03 - 100 volt
Part # R800 9407 04 - 240 volt

USA, Canada, Taiwan
Continental Europe
United Kingdom
Japan
Australia
