Roland
Roland Boutique SE-02 Analog Synthesizer SE02 $ 710 $789.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Or Rent From
$6.70 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Description

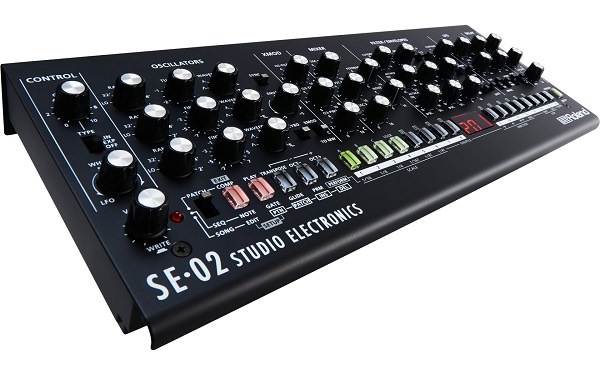

Roland SE-02 Analog Synthesizer

Vintage sound. Unexpected power.

A collaborative effort from Roland and Studio Electronics, the SE-02 is the debut product of the new Roland Boutique Designer Series. The SE-02 uses authentic discrete analog circuitry to create a synthesizer with a distinctly vintage sound and vast programming options. With an array of high-quality knobs and switches and a uniquely creative onboard sequencer, the SE-02 delivers massive tone and texture with expressive hands-on control.


Features

  • Discrete analog circuitry with knob-per-function interface
  • Three voltage controlled oscillators with six waveforms
  • Temperature-stabilized oscillators with automatic tuning
  • 24 dB low-pass filter and dual gain-stage amplifier
  • Three types of cross modulation (XMOD), feedback loop, and noise generator
  • Tempo-syncing LFO with nine waveforms
  • Tempo-syncing digital delay with bypass to maintain analog signal path
  • Save and recall sounds with 384 preset and 128 user locations
  • Musical and intuitive pattern sequencer with song mode
  • Sequence notes, gate time, glide, and synth parameters
  • CV, VCF CV and gate inputs, plus trigger in/out
  • External Input for routing audio through the SE-02’s filter section
  • Standard MIDI, USB-MIDI, and USB-Audio
  • Create a polyphonic synth by using Chain Mode to connect two or more SE-02s together via MIDI
  • DAW-integrated SE-02 Sound Editor software
  • Compatible with the K-25m Keyboard Unit (sold separately) and DK-01 Docking Case (sold separately)


Specifications

Polyphony

1 voice

Preset Patch

384 (128 x 3 BANK)

User Memory

Patch: 128
Pattern: 128
Song: 16

Oscillators

OSC 1, OSC 2, OSC 3 (OSC 3 is also available as LFO)
Waveform: Triangle, Sawtooth, Triangle + Sawtooth (OSC 1, 2 only), Reverse sawtooth (OSC 3 only), Square 1–3

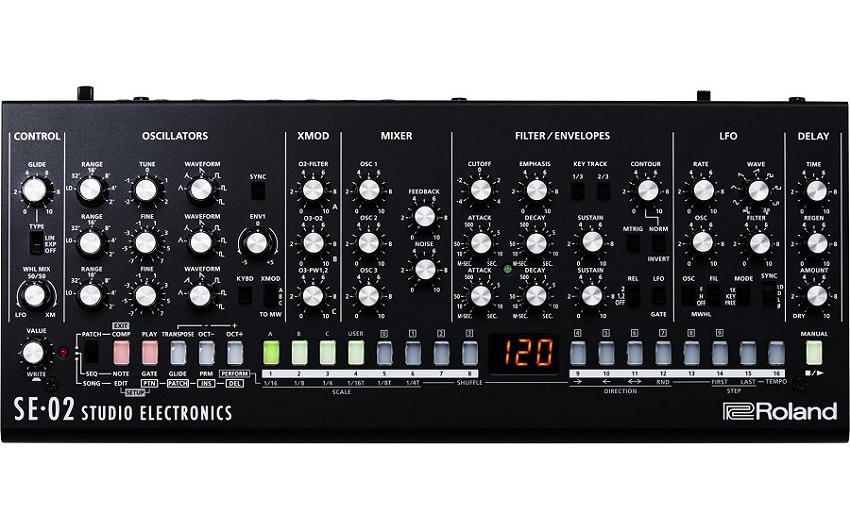

Controllers

Common section
VALUE knob
Tempo LED
MODE select switch
FUNCTION select buttons
1–16 buttons
Display
MANUAL button
CONTROL section
GLIDE knob
TYPE switch
WHL MIX knob
OSCILLATORS section
[VCO 1]
RANGE knob
TUNE knob
WAVEFORM knob
[VCO 2]
RANGE knob
FINE knob
WAVEFORM knob
[VCO 3]
RANGE knob
FINE knob
WAVEFORM knob
SYNC switch
ENV1 knob
KYBD switch
XMOD TO MW switch
XMOD section
O2-FILTER knob
O3-O2 knob
O3-PW1, 2 knob
MIXER section
OSC1 knob
OSC2 knob
OSC3 knob
FEEDBACK knob
NOISE knob
FILTER/ENVELOPES section
[FILTER]
CUTOFF knob
EMPHASIS knob
KEY TRACK 1/3, 2/3 switch
CONTOUR knob
MTRIG switch
NORM/INVERT switch
[FILTER ENVELOPE]
ATTACK knob
DECAY knob
SUSTAIN knob
[AMP ENVELOPE]
ATTACK knob
DECAY knob
SUSTAIN knob
REL switch
LFO/GATE switch
Gate LED
LFO section
RATE knob
OSC knob
WAVE knob
FILTER knob
MWHL switch
MODE switch
SYNC switch
DELAY section
TIME knob
REGEN knob
AMOUNT knob

Effect
Delay

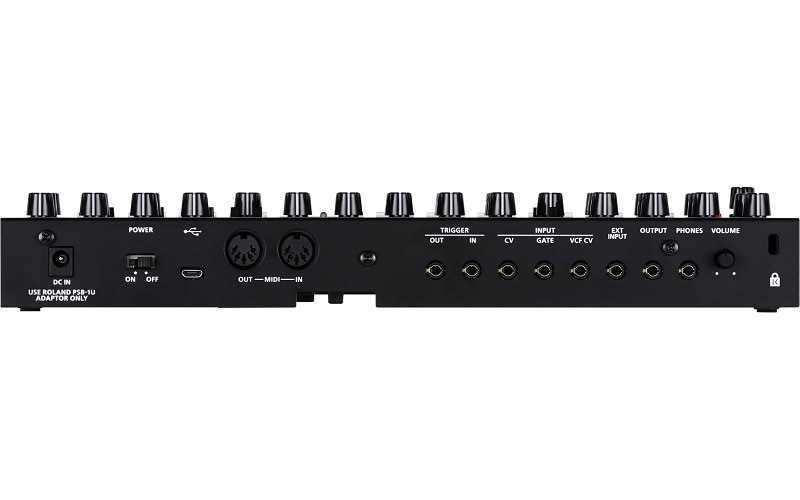

Connectors
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
EXT INPUT jack: Miniature phone type
VCF CV INPUT jack: Miniature phone type
CV INPUT jack: Miniature phone type
GATE INPUT jack: Miniature phone type
TRIGGER IN jack: Miniature phone type
TRIGGER OUT jack: Miniature phone type
MIDI connectors (IN, OUT)
USB port: Micro B type (Audio, MIDI)

Power Supply

AC adaptor (PSB-1U)

Current Draw
2 A

Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

Options (sold separately)
Keyboard Unit: K-25m
Boutique Dock: DK-01

SIZE AND WEIGHT

Width
300 mm
11-13/16 inches

Depth
128 mm
5-1/16 inches

Height
46 mm
1-13/16 inches

Weight (excluding AC adaptor)
950 g
2 lbs 2 oz
