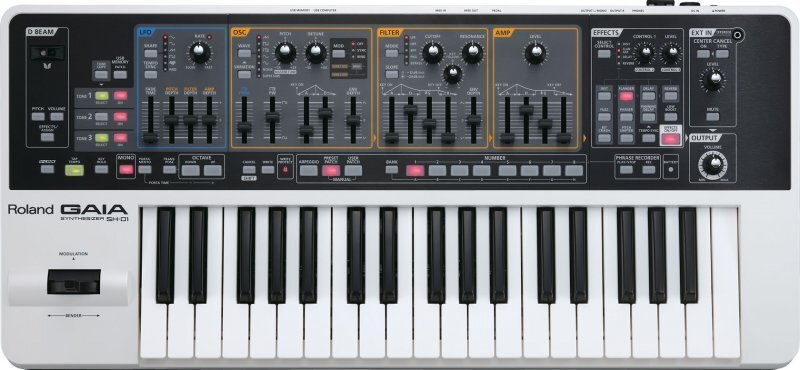

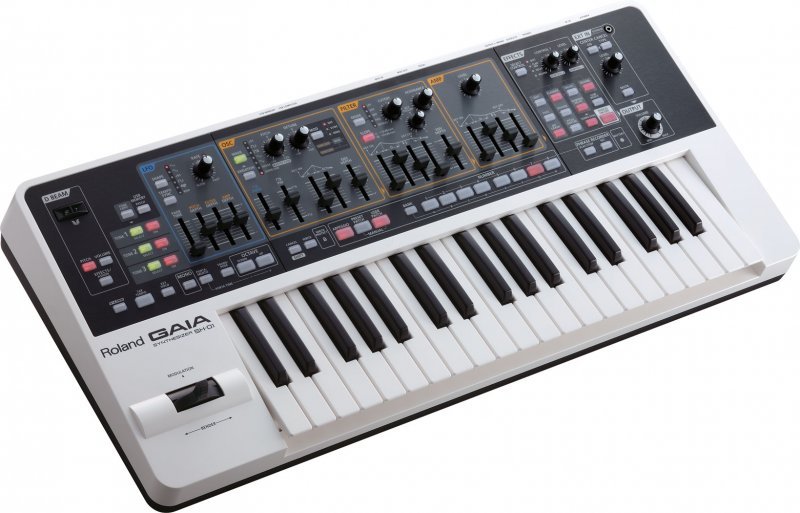

Roland SH-01 Synthesizer SH01 $ 1089 $1,249.00
How to get it Learn More
Delivery Not Available
Order Special Order - Request Availability
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

EM Editor’s Choice 2011With its massive sound, hands-on ease, and affordable price, the GAIA SH-01 is a high-performance value with old-school charm. The triple-stacked engine puts potent virtual analog synthesis under your fingertips, yet the control panel is so fun, friendly, and inviting, even first-timers can create great sounds. The signal flow is simple to grasp, with logically arranged knobs, sliders, and buttons. Hands-on control and fat sound make this little powerhouse a joy for music students, songwriters, session players, and live performers of all styles and skill levels.




  • Huge sound with three virtual analog engines onboard, each with a dedicated oscillator, filter, amplifier, envelope, and LFO

  • Layer up to five simultaneous effects, including distortion, flanger, delay, reverb, low boost, and more

  • 64-voice polyphony for massive sounds without note drop-out

  • Fun, hands-on control panel that’s great for instant gratification, and for learning synthesis

  • Lightweight, compact body with 37 full-size keys

  • Runs on AC or battery power for portable convenience

  • D Beam, arpeggiator, and Phrase Recorder onboard

  • USB ports for saving user patches to USB flash drives, and for audio/MIDI connection to computers


  •






New sound libraries are available on Axial! Click here to download









Triple-Fat Virtual Analog







Sink your teeth into the new triple-stacked virtual analog engine, comprising three complete synths for incredibly thick, powerful sound. Unleash the beef of three oscillators that drive a trio of multimode, resonant filters, multi-shape LFOs, and amplifiers, plus nine envelope generators. It’s like having three synthesizers in one! With 64 polyphonic voices onboard, the GAIA SH-01 makes it possible to play massive sounds without experiencing note drop-out.

Stackable Effects

From the silkiest reverb to the grittiest growl, the SH-01’s instantly selectable multi-effects will catapult your sounds into another spatial dimension. You can layer up to five simultaneous effects for dozens of variations. The onboard effects include reverb, distortion, fuzz, bit crash, flanger, phaser, pitch shifter, low boost, and delay with panning and tempo sync. Dedicated control knobs are provided for tweaking the effects in real time.

Portable Power

At less than 10 pounds, the GAIA SH-01 is lightweight, compact, and great for musicians on the go. The 37-note keyboard is full-size, however, so performers can play naturally and comfortably. The synth can be powered via AC or batteries* for the ultimate in portable convenience. A battery-life indicator on the front panel ensures that you won’t lose power unexpectedly. When used in conjunction with a battery-powered amp such as Roland’s CUBE Street, MOBILE CUBE, BA-330 or KC-110, the GAIA SH-01 can be played and heard anywhere!

Instant Control

The front panel puts every control directly under your fingertips. There are no hidden menus, no nonsense. Just play and move the knobs and sliders, or wave your hands over the invisible D Beam for dramatic effects. The logically designed front panel shows the signal path from left to right. It helps beginners understand synthesis, while experienced players will love the instant gratification of hands-on control during performance.

Phrase Recorder and Arpeggiator

Hold a note or chord and let the arpeggiator create musical magic automatically for you. The tempo can be set via tap tempo. In addition, the onboard Phrase Recorder lets you record what you play on the keyboard as well as the movements of the knobs and sliders. The controller data can also be played back independently to complement the notes you play in real time.

USB and EXT IN

Connect directly to a computer (Mac or PC) with one simple USB cable, and stream audio directly to the software of your choice. The SH-01’s USB ports can also be used to transmit and receive MIDI data, and to store your patches and phrases (recorded with the Phrase Recorder) to a USB memory stick. For integrating with external devices, the SH-01’s EXT input lets you connect external audio sources such as an MP3-player and play along with your favorite songs or backing tracks - great for practice and live performance. Manipulate the incoming audio with three Center Cancel modes, which let you eliminate pre-recorded vocals, guitars, or bass.

*Can be powered by eight rechargeable Ni-MH AA batteries.

Specifications

keyboard
37 keys (velocity sensitive)
Maximum Polyphony
64 voices
Sound Generator Section
Virtual analog synthesizer sound generator (Number of part: 1)
(Oscillator + Filter + Amp + Envelopes + LFO) x 3

PCM sound generator (Number of parts: 15)
Patch Memory
Preset: 64
User: 64
OSC Section
Oscillator waveform
SAW, SQUARE, PULSE/PWM, TRIANGLE, SINE, NOISE, SUPER SAW
Knobs/Sliders
PITCH, DETUNE, Pulse Width, Pulse Width Modulation
Envelope
Attack, Decay, Envelope Depth
Modulation
Oscillator Sync, Ring Modulation
(Tone 2's OSC 2 is applied as modulation to Tone 1's OSC 1.)
FILTER Section
Filter Type
LPF, HPF, BPF, PKG (-12 dB/-24 dB)
Knobs
CUTOFF, RESONANCE, KEY FOLLOW
Envelope
Attack, Decay, Sustain, Release, Envelope Depth
AMP Section
Knobs
LEVEL
Envelope
Attack, Decay, Sustain, Release
LFO Section
LFO Shape
TRIANGLE, SINE, SAW, SQUARE, Sample
Knobs/Sliders
RATE, FADE TIME, PITCH DEPTH, FILTER DEPTH, AMP DEPTH
Tempo Sync
ON/OFF
Effects
DIST
Distortion, Fuzz, Bit Crash
FLANGER
Flanger, Phaser, Pitch Shifter
DELAY
Delay, Panning Delay (with tempo sync function)
REVERB
Reverb
LOW BOOST
Low Boost
Knobs
Control 1, Level
Controllers
Pitch Bend/Modulation lever
D BEAM Controller
Arpeggiator
Preset pattern: 64
Phrase Recorder
User: 8
Number of Track: 1

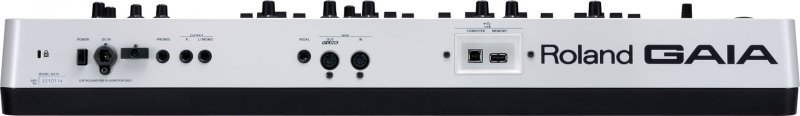

Jacks/Connectors
OUTPUT jacks (L/MONO, R) (1/4 inch phone type)
Headphone jack (Stereo 1/4 inch phone type)
PEDAL jack (TRS phone type)
MIDI Connectors (IN, OUT)
USB COMPUTER (supports USB Hi-Speed Audio/MIDI)
USB MEMORY (supports USB 2.0 Hi-Speed flash memory)
EXT IN jack (Stereo miniature phone type)
DC IN jack
Power Supply
DC 9 V (AC Adaptor or rechargeable nickel-metal hydride AA batteries x 8)
* Batteries sold separately.
* Zinc-carbon batteries or alkaline batteries cannot be used.
Current Draw
600 mA
Battery life for continuous use
Approximately 5 hours
* Using rechargeable nickel metal hydride batteries
* Approximately 4 hours if USB memory is connected
* Differs depending on the conditions of use
Accessories
Owner’s Manual, Guide Book, CD-ROM (USB DRIVER), DVD Video, AC Adaptor (PSB-1U), Power Cord
Options
Keyboard Stand: KS-18Z(*), Pedal Switch: DP series, Expression Pedal: EV-5, USB Memory: M-UF2G
* Make sure that this instrument is mounted at a height that is no higher than 1 meter.
Size and Weight
Width
689 mm
27-3/16 inches
Depth
317 mm
12-1/2 inches
Height
100 mm
3-15/16 inches
Weight
4.2 kg
9 lbs. 5 oz.
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
