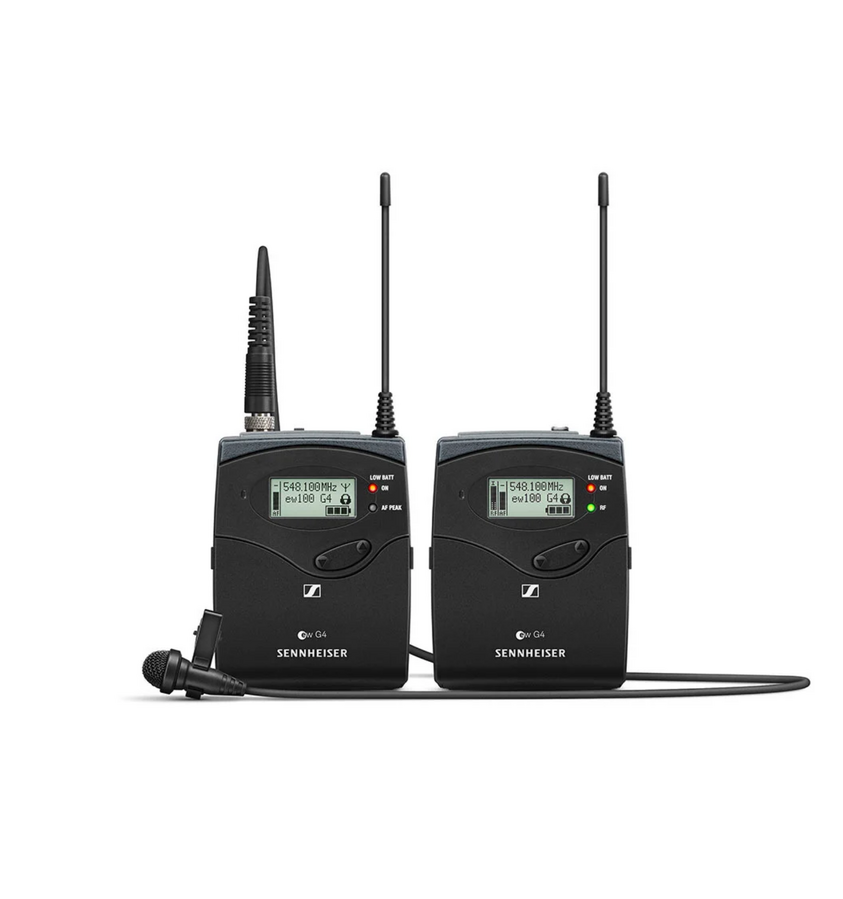

Wireless omni-directional lavalier for performers, speakers and reporters. Providing the highest flexibility for outdoor shoots and field recordings.
A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Reliability and performance
Eventually, you’ll most likely get to a point in your filmmaking career when you realize that audio quality is just as important as video quality when it comes to creating compelling content. And at a certain point, reliability and consistency become the top priorities when recording wireless audio while on set or in the field. Enter the evolution wireless G4 100 Series—the next level in your journey as a professional filmmaker.
Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
Differences between the sets
The 112P, 122P, 135P and 100 ENG sets are all great options and vary depending on your needs. The 112P features our omni-directional ME 2-II lavalier microphone while the 122P features our cardioid ME 4 lavalier microphone. The 135P swaps the bodypack transmitter and lavalier mic for the SKM 100 handheld transmitter and MMD 835 cardioid capsule. For those that need a combination of both for a range of Electronic News Gathering applications, the EW 100 ENG G4 set includes the ME 2-II lavalier and adds the SKP 100 plug-on transmitter for your existing dynamic XLR microphone or a battery powered shotgun mic like the MKE 600.

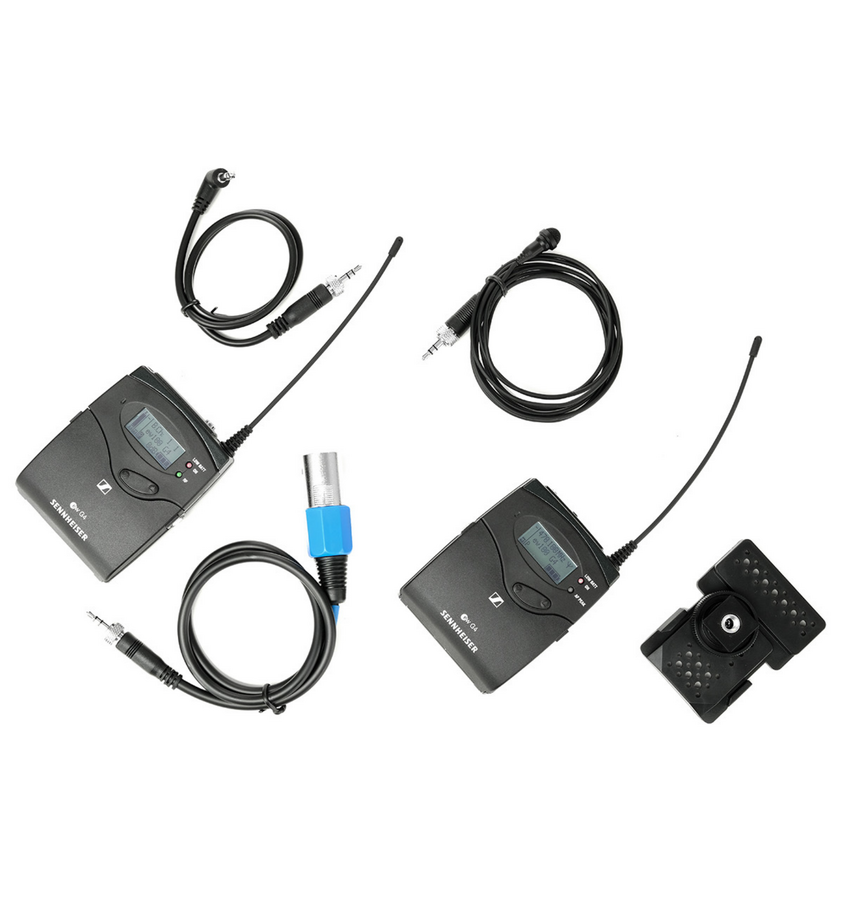

What's in the Box
Specifications
EK 100 G4
Frequency range A: 516 - 558 MHz A1: 470 - 516 MHz AS: 520 - 558 MHz B: 626 - 668 MHz C: 734 - 776 MHz C-TH: 748.3 MHz - 757.7 MHz D: 780 - 822 MHz E: 823 - 865 MHz G: 566 - 608 MHz GB: 606 - 648 MHz JB: 806 - 810 MHz K+: 925 - 937,5 MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight (incl. batteries) approx. 160 g
Audio output 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio ≥ 110 dBA
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM

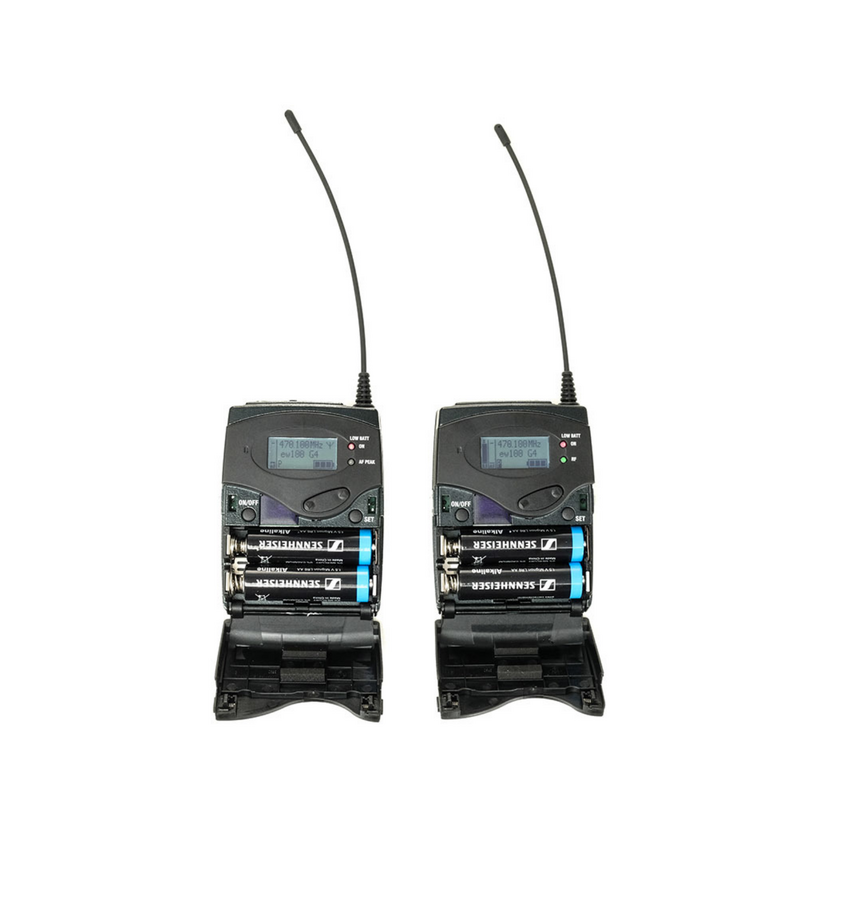

Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 µA
Adjacent channel rejection ≥ 65 dB
Intermodulation attenuation ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity < 1.6 μV for 52 dBA eff S/N
Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
Temperature Range -10 °C to +55 °C
Receiver Principle Adaptive diversity
Blocking ≥ 70 dB
Frequency range 748.3 MHz - 757.7 MHz
SK 100 G4
RF output power Max. 30 mW
Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA
Input impedance 40 kΩ, unbalanced / 1 MΩ
Max. Input voltage 3 Veff
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Frequency stability ≤ ±15 ppm

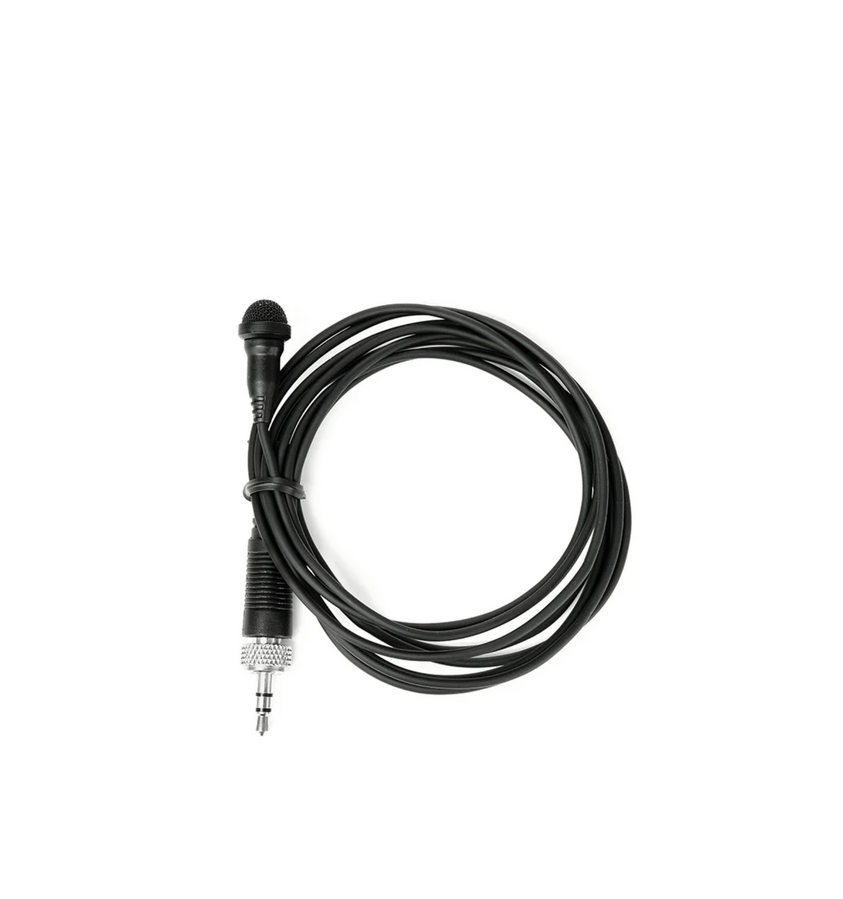

ME 2
Connector 3.5 mm jack
Frequency response 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level 130 dB
Cable length approx. 1.60 m
Transducer principle pre-polarized condensor microphone
Pick-up pattern omni-directional
Sensitivity in free field, no load (1kHz) 20 mV/Pa
Equivalent noise level 36 dB
Visit manufacturers website for more information
