Two Notes Torpedo C.A.B M Plus Cabinet Simulator Pedal TWO-CABMPLUS $ 449 $549.00
How to get it Learn More
Store Click & Collect - Not Available Order - Out of stock
Online In Stock - From Supplier
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

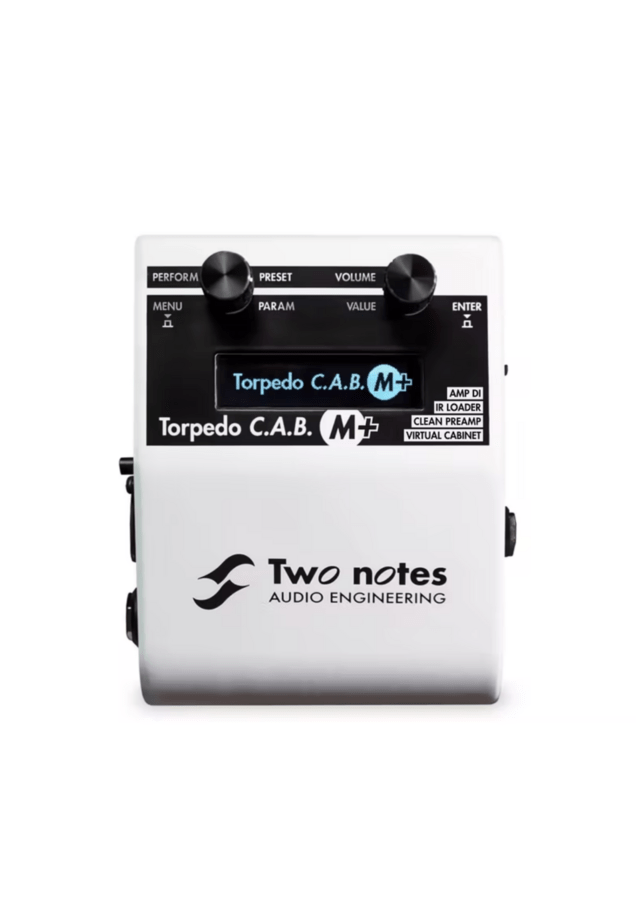

Two Notes Torpedo C.A.B M Cabinet Simulator Pedal

The Torpedo C.A.B. “Cabinets in A Box” M Plus is the missing link between the guitarist’s rig and the PA or an audio interface. You love the sound of your carefully chosen pedals interacting with your amp. With the Torpedo technology, the tone you created is faithfully sent directly to the PA or the audio interface with consistency at any show, studio session or rehearsal. At last, end the hassle of cables, mics and poor room quality that prevent your tone to be at its best.

Torpedo C.A.B. M delivers the cab sim every player has been looking for, in a compact pedalboard friendly size. Go direct to the PA and the audio interface from your pedalboard with Torpedo C.A.B. M and create a lightweight rig. Use it as an amp DI between your amp and the cabinet to send your true tube tone to the PA. Pair it with Torpedo Captor to practice your tube amp silently at home with headphones.

Exclusive Torpedo technology
Two notes’ highly realistic cab sim is achieved by use of convolution. Two notes started from that technology and brought it much further, to accurately reproduce the characteristics of the whole miking chain (speaker, microphone, preamplifier, studio room acoustic). Many parameters influence the sound of your guitar or bass rig when it comes to recording. Hence, taking good care of the cabinet selection and miking will dramatically improve the sound of your takes. The Torpedo cab sim reproduces the tiniest variations of a cabinet behavior (such as its frequency response). Move the microphone in the virtual studio room thanks to the Torpedo IR synthesis: all the settings you need to achieve great recordings are here. Because we want you to express your full potential, the Torpedo processing is compatible with third-party IRs, and the Torpedo C.A.B. M can load mono files in high resolution, up to 200ms in real time.

The stompbox-style Torpedo
The Torpedo C.A.B. M is the most advanced cab sim, designed for the player who wants to record and gig without the hassle of the mics and the cables. As a standalone unit, the Torpedo C.A.B. M comes loaded with 32 Two notes Virtual Cabinets, 8 microphones and 8 rooms to choose from, right out of the box.

With an amp
Offer your amplifier the best amp DI you can dream of: connect the speaker output of your amp into the Torpedo C.A.B. M input and the SPEAKER OUT of the C.A.B. M into your speaker cabinet. No need for a microphone, the most versatile amp DI on Earth is taking care of the miked cab sim. (DISCLAIMER: the C.A.B. M is not a load box. If you connect your amp output to the pedal you must connect the cabinet to the Speaker output of the C.A.B. M)

With a preamp
Connect your preamplifier directly to the Torpedo C.A.B. M and take advantage of our exclusive tube power amp modeling. Select a type of amplifier and its characteristics, a tube model, and make your preamp sing as it deserves!

Consistent tone, anywhere, without an amp.
Use Torpedo C.A.B. M with your pedalboard to go direct to the PA or the audio interface. The cab sim pedal sends a magnificient miked cabinet sound from your pedalboard. Torpedo C.A.B. M is the power amp, the cabinet with 2 mics to design the sound you want from your pedalboard.

Use your amp silently.
Pair Torpedo C.A.B. M with a load box (Torpedo Captor) to create a silent and lightweight amp rig.
Torpedo C.A.B. M will send your tube amp tone direct to the PA or the interface. Enjoy consistent tone anywhere with your amp, without the hassle of the cabinet, mics and cables.

Perform without miking your cabinet.
Use Torpedo C.A.B. M as amp DI. Place it between the amp and the cabinet to send the full tone of the amp to the PA or the audio interface. You have your true amp tone going direct with the cab sim pedal. Keep your cabinet as a monitor on stage.
(DISCLAIMER: The Torpedo C.A.B. M is not a load box. You need a load box or a cabinet connected to the SPEAKER OUT of the pedal at all times)


Specifications

Connectivity

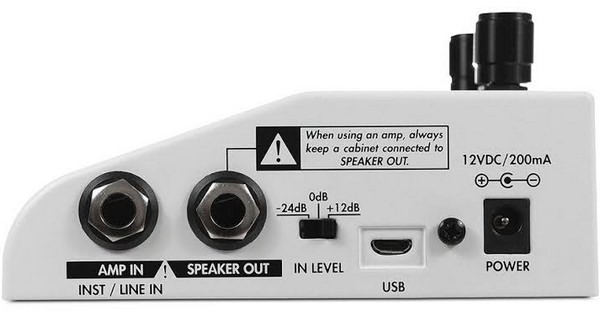

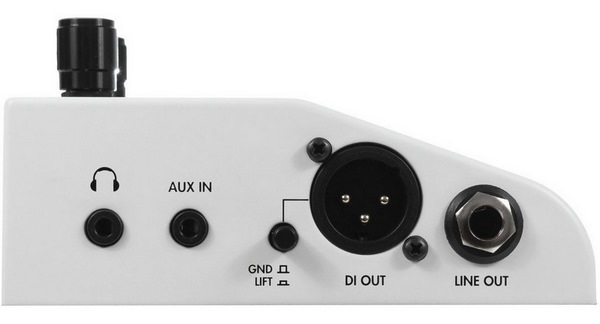

  1. Parameter/Preset Encoder
  2. Value/Volume Encoder
  3. OLED display screen
  4. Amp/Instrument/Line input
  5. Speaker Output (!!when an amp is connected to the AMP input, the related cabinet has to be connected to the SPEAKER output of the pedal!!)
  6. Input level sensitivity
  7. USB for Remote application
  8. Mains power adapter connector
  9. Headphones output
  10. Auxiliary input
  11. Ground lift switch
  12. Balanced XLR D.I output
  13. Balanced TRS jack output

Input / Output

  • AMP/INST/LINE Input: 1/4″ Jack balanced (TRS, Tip/Ring/Sleeve)
    • Max level: 4,7 dBu (GTR) / 10,3 dBu (LINE)
    • Impedance : 100 KOhms (GTR) / 10 KOhms (LINE)
  • Aux In: 1/8″ (3.5mm) TRS Jack
  • Speaker Output: 1/4″ Jack balanced (TRS)
  • AMP/LINE Output: 1/4″ Jack balanced (TRS)
    • Max level: 10 dBu (AMP) / 16 dBu (LINE)
    • Impedance : 470 Ohms
  • Headphones output: 1/8″ (3.5mm) TRS Jack
  • USB connector

Digital audio

  • 24 bits / 96 kHz converters
  • Bandwidth (-1dB): 12Hz – 19 kHz
  • Signal/Noise ratio: > 95 dB
  • Internal processing at 32 bits
  • Latency: 1.7 ms (Line Input to Line Output)

Power

  • Mains power adapter: DC Jack 2.1mm, negative center
  • Input voltage: 12V DC
  • Power consumption: approx. 3.6W
  • Current consumption: 200mA

Dimensions & weight

  • Width x depth x height: 121 x 96 x 63 (mm)
  • Weight: 450 g
