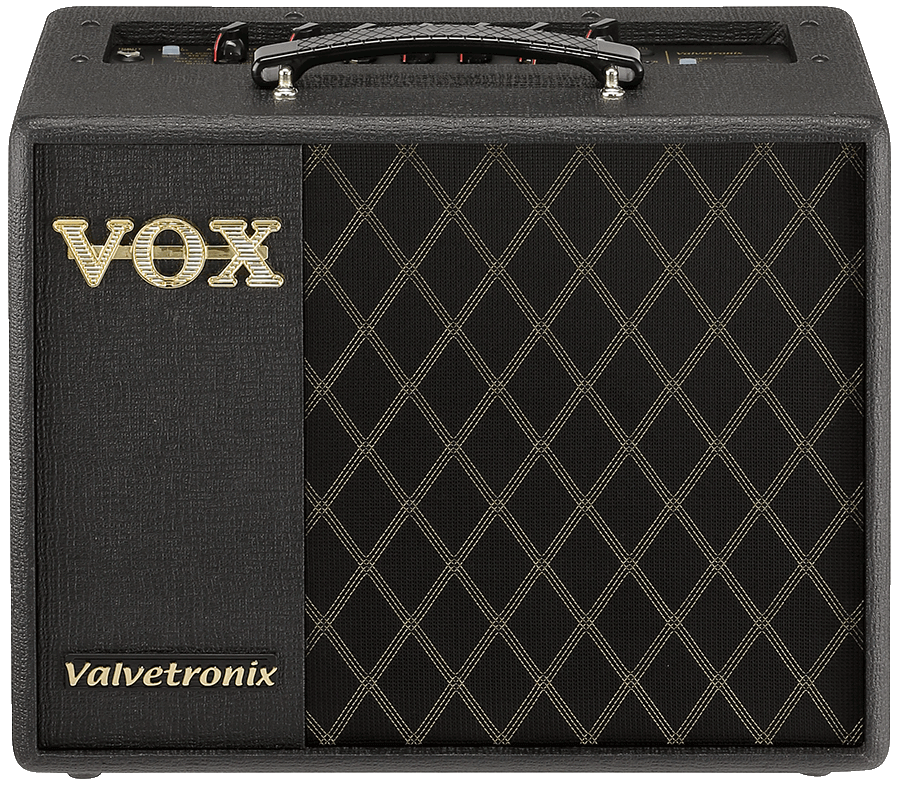

Vox VT20X Modelling Guitar Amp 20Watt With Valve VOX-VT20X $ 399 $479.00
How to get it Learn More
Store Click & Collect - Not Available Order - Out of stock
Online In Stock - From Supplier
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

The VT20X features a brand new modeling engine and sounds even better than ever! By using VET (Virtual Element Technology), which is based on an analysis of the components and amp circuits themselves, VTX amplifiers produce the most accurate and realistic amplifier sounds to date.  These new amplifiers also feature a multi-stage Valvetronix tube preamp. This preamp design incorporates authentic analog circuitry to achieve the subtle tonal adjustments and capture the nuances that are distinctive of vacuum tube amps. In addition to this clever circuitry, VTX amplifiers feature a tightly sealed cabinet and a proprietary bass-reflex designed to deliver stunning resonance. Go beyond the realm of previous modeling amps with the new VOX Tone Room editing software that lets you customize the existing amps and effects yourself, or create your own!

Specifications

Power Amplifier Output:
VT20X: Maximum approx. 20W RMS @5 ohms

Amp Models:
11/20 (when using Tone Room - Editor/Librarian software)
DELUXE CL、TWEED 4x10、VOX AC30、BOUTIQUE OD、VOX AC30TB、BRIT 800、BRIT OR MKII、DOUBLE REC、BOUTIQUE CL、BRIT 1959、BOUTIQUE METAL

Effects:
Pedal 1 type: 4 (COMP, CHORUS, OVERDRIVE, DISTORTION)
Pedal 2 type: 4 (FLANGER, PHASER, TREMOLO, DELAY)
Reverb type: 4 (ROOM, SPRING, HALL, PLATE)
Noise Reduction: 1

Programs:
33/60 (when using Tone Room - Editor/Librarian software)

User Programs:
8 (2 banks x 4 channels)

Speaker:
VT20X: 8" 5 ohms

Inputs / Outputs
INPUT jack, AUX IN jack, Headphone jack, FOOT SW jack, USB (Type B) mini port

Signal Processing
A/D conversion: 24-bit
D/A conversion: 24-bit

Power Supply
VT20X: AC adapter (DC 12 V)

Current Consumption
VT20X: 2.50 A

Dimensions (W x D x H):
VT20X: 410 x 225 x 347 / 16.14" x 8.86" x 13.66"

Weight
VT20X: 7.3 kg / 16.09 lbs.

Included Items
VT20X: AC adapter

Accessories (sold separately):
VOX VFS2 footswitch, VOX VFS5 footswitch

*Specifications and appearance are subject to change without notice for improvement.

Features



Download
VOX ToneRoom Installer for Windows
ToneRoom_Installer_110en.exe

Tone Room v1.1.0

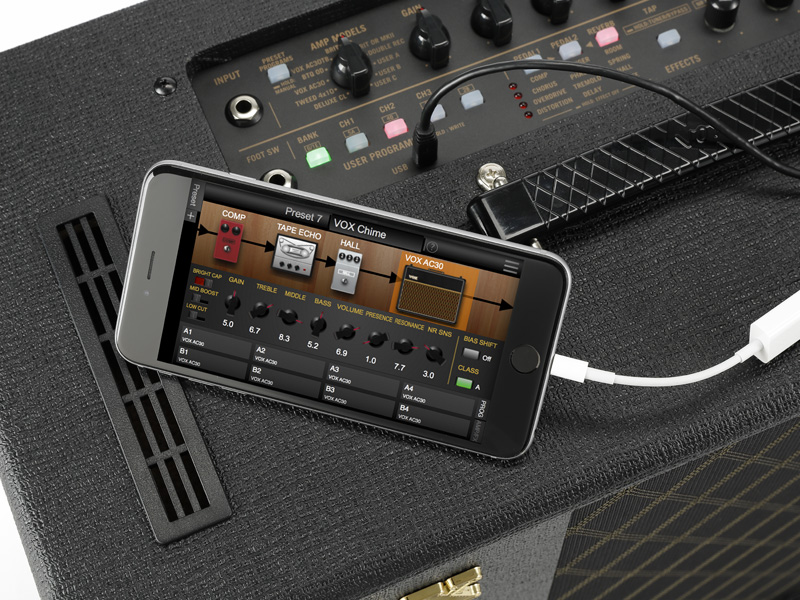

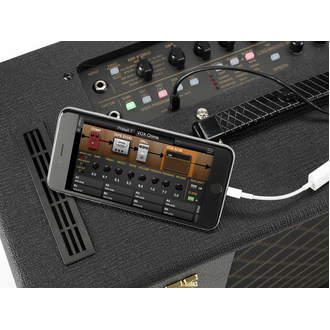

Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.

Connect your VX or VTX amplifier to a Windows/Mac/iPad/iPhone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.



Before using Tone Room with PC / Mac, please install to install the VOX USB MIDI Driver.

Changes in Version 1.1.0

  •          VT20X/40X/100X are now supported.
  •          Windows 10 is now supported.
  •          MacOS 10.11 is now supported.
  •          Some minor improvements have been implemented to improve stability.



System Requirements

  • Windows 7 SP1  All editions (32/64bit)
  • Windows 8.1  All editions (32/64bit)
  • Windows 10  All editions (32/64bit)



 How to update

  •    Unzip the downloaded file, please run the installer.





VOX ToneRoom Installer for MAC
ToneRoom_Installer_110.dmg

Tone Room v1.1.0

Tone Room is designed to work as an editor/librarian for VOX products, including the VX II, VT20X/40X/100X.

Connect your VX or VTX amplifier to a Windows/Mac/iPad/iPhone with a USB cable. Tone Room allows you to edit sounds, manage programs, and backup your settings.



Before using Tone Room with PC / Mac, please install to install the VOX USB MIDI Driver.

Changes in Version 1.1.0

  •          VT20X/40X/100X are now supported.
  •          Windows 10 is now supported.
  •          MacOS 10.11 is now supported.
  •          Some minor improvements have been implemented to improve stability.



System Requirements

  • Mac OS X10.8 or later
  • Mac OS X10.9 or later
  • Mac OS X10.10 or later
  • Mac OS X10.11 or later



How to update

  •    Mount the downloaded disk image file, please run the installer.



Manual
Owner's Manual for VT20X / VT40X
VT20X_VT40X_OM_EFGS1_WEB.pdf

Owner's Manual
