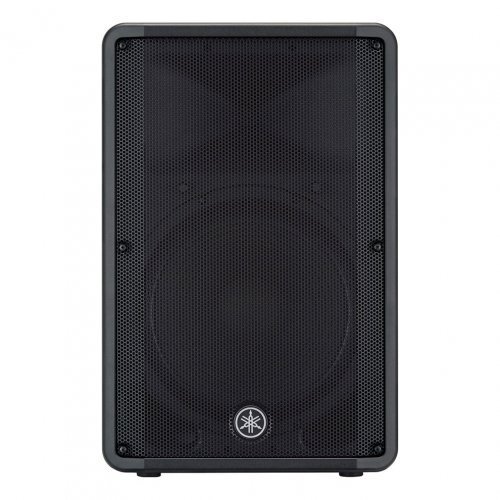

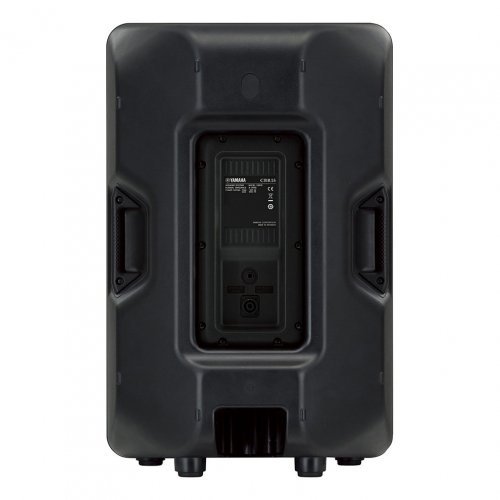

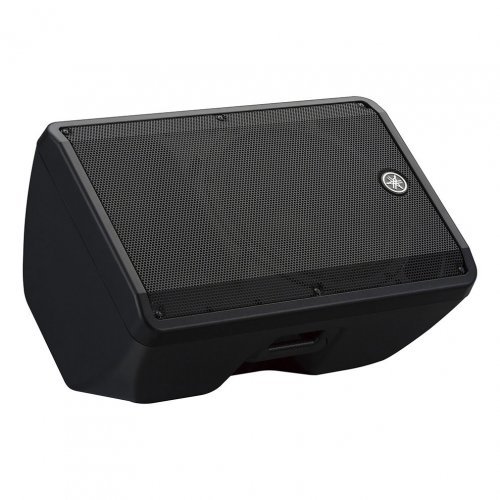

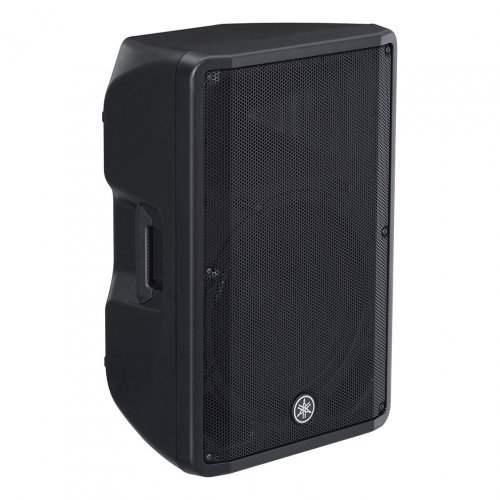

Yamaha CBR15 15" Passive Speaker Bin ZJ05320 $ 559 $649.99
How to get it Learn More
Store Click & Collect - Not Available Order - Out of stock
Online In Stock - From Supplier
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

Specifications

Specs

General specifications

Speaker type 2-way Speaker, Bass-reflex Type
Frequency range (-10dB) 46 Hz - 20 kHz
Nominal coverage H 90°
V 60°
Components LF 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover 2.0 kHz
Power rating NOISE 250W
PGM 500W
PEAK 1000W
Nominal impedance
SPL Sensitivity (1W; 1m on axis) 96dB SPL
Peak (Calculated) 126 dB SPL
I/O connectors 1/4"Phone x 1, speakON NL4MP x 1
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socket Φ35 mm Bottom x 1
Dimensions W 455mm (17.9")
H 700mm (27.6")
D 378mm (14.9")
Net weight 17.7 kg (39.0 lbs)
Accessories Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400

Features

Features

Reviews

Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.

Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:

a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.

We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.
